Transform Your Mac Mini with the Wokyis M5 Dock: A Retro-Inspired Powerhouse
The Wokyis M5 Dock is a unique accessory that combines nostalgic design with modern functionality, transforming your M4 Mac mini into a device reminiscent of the classic Macintosh. This dock not only enhances the aesthetic appeal of your workspace but also expands the capabilities of your Mac mini.
Design and Build

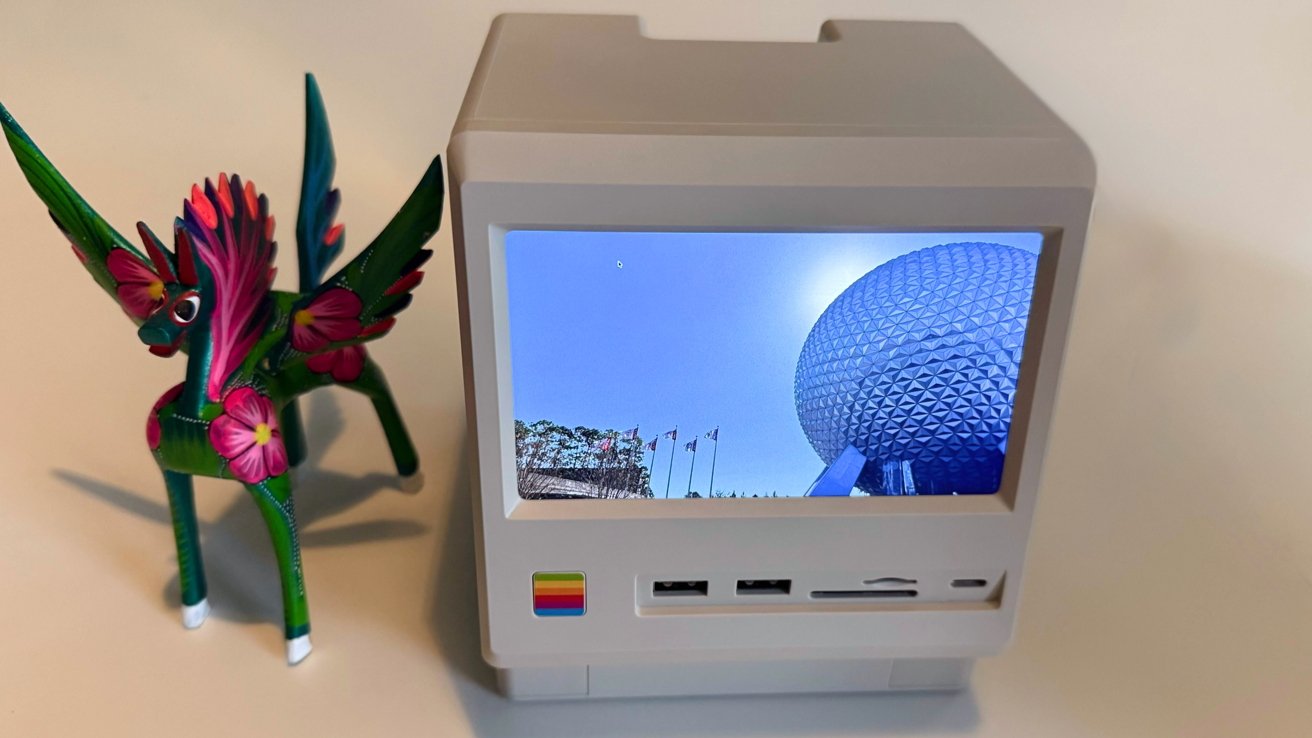

Crafted from off-white plastic, the Wokyis M5 Dock mirrors the iconic look of the original Macintosh. Measuring 6.06 inches by 5.71 inches by 5.16 inches, it is slightly larger than the Mac mini itself. The design allows the Mac mini to sit atop the dock, elevating its total height to 6.21 inches. This setup not only saves desk space but also adds a touch of retro charm to your setup.
Display Features
A standout feature of the Wokyis M5 Dock is its integrated five-inch display with a resolution of 1280×720 pixels, offering approximately 290 pixels per inch. While compact, this screen is ideal for monitoring applications like Messages, Slack, or Discord, providing at-a-glance updates without occupying your main display. Brightness controls are conveniently located in the handle divot at the top of the dock.
Connectivity Options
The dock offers a variety of ports to enhance connectivity:
– Front Ports:
– Two USB-A 10Gbps ports
– One USB-C 10Gbps port
– SD and microSD card readers
– A six-color square power button for the display
– Rear Ports:
– USB-C host port for Mac mini connection
– Two USB-A 10Gbps ports
– Power input for the dock
– Headphone jack
– HDMI-in port
The dock is available in two versions:
1. 10Gbps Version: Suitable for users with standard data transfer needs.
2. 80Gbps Thunderbolt 5 Version: Designed for professionals requiring higher bandwidth, this model includes:
– Thunderbolt 5 host support
– An additional USB-C 10Gbps port
– DisplayPort output supporting up to 8K at 60Hz
Storage Expansion
The rear of the dock features a metal door that doubles as a heat sink, concealing a slot for an M.2 NVMe SSD. It accommodates drives in M.2 2230, 2242, 2260, and 2280 formats. The 10Gbps model supports a maximum speed of 10Gbps across the dock, which may limit simultaneous high-speed data transfers. In contrast, the Thunderbolt 5 version offers significantly higher bandwidth, allowing for faster data transfers and more efficient multitasking.
Performance Considerations
While the 10Gbps model is adequate for general use, it may experience bandwidth limitations when multiple high-speed devices are connected simultaneously. The Thunderbolt 5 version addresses this by providing ample bandwidth to support multiple devices and high-resolution displays without compromising performance.
Conclusion
The Wokyis M5 Dock is an excellent choice for Mac mini users seeking to blend retro aesthetics with modern functionality. Its thoughtful design, integrated display, and versatile connectivity options make it a valuable addition to any workspace. For users with higher performance demands, the Thunderbolt 5 version is recommended to fully leverage the dock’s capabilities.
