Apple’s commitment to innovation extends beyond its flagship devices to the accessories that power them. A recent teardown of the 40W Dynamic Power Adapter, capable of delivering up to 60W, reveals a sophisticated design that balances high performance with safety through meticulous thermal monitoring.
Design and Construction

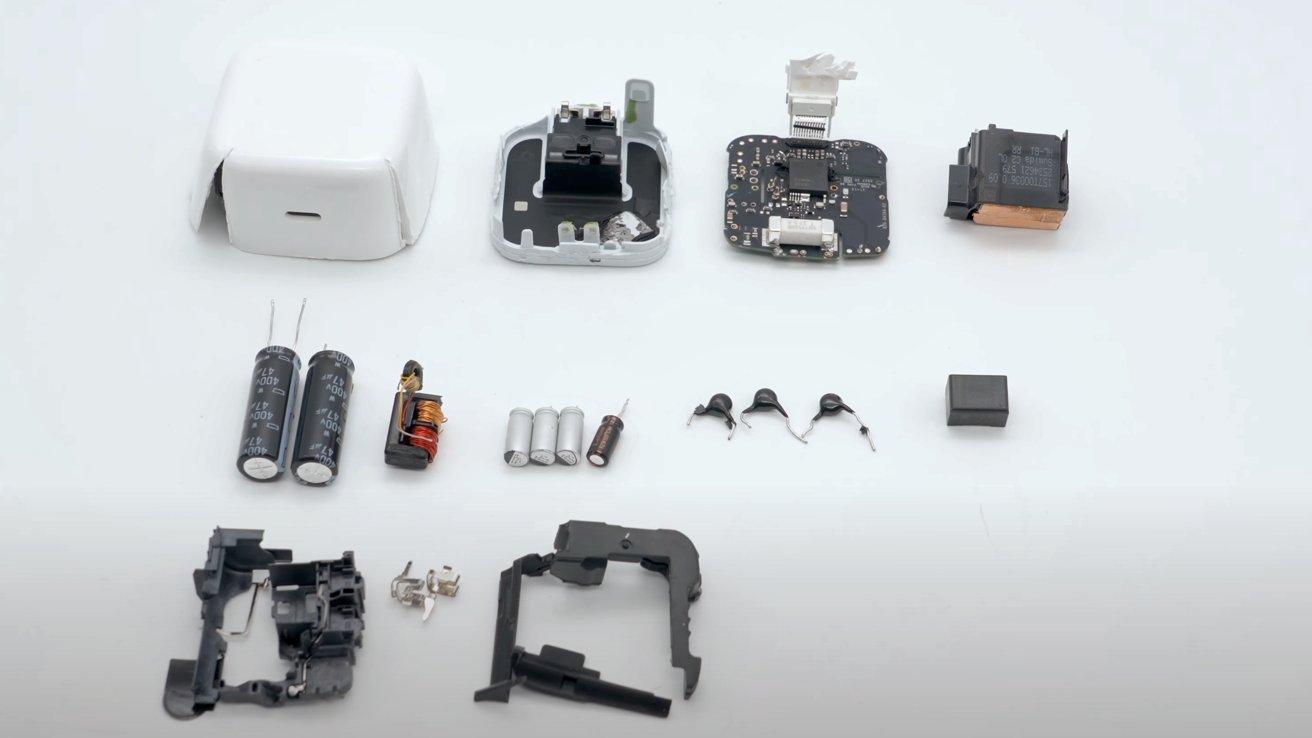

At first glance, the 40W Dynamic Power Adapter bears a resemblance to Apple’s earlier 35W Dual USB-C Charger, featuring foldable prongs for portability. However, a deeper examination uncovers significant advancements. The adapter employs snap-fit clips and ultrasonic welding to secure its components, ensuring a compact and durable structure. Internally, a graphite thermal pad lines the casing, complemented by a rubber cushion, both of which aid in heat dissipation and protect internal elements.
Custom Silicon Integration
Central to the adapter’s functionality is a custom-designed chip commissioned by Apple from PI. This master control chip integrates several critical functions:
– Primary Controller: Manages the overall operation of the adapter.
– High-Voltage MOSFET: Facilitates efficient power conversion.
– Synchronous Rectifier Controller: Enhances the efficiency of power delivery.
– Feedback Mechanisms: Ensures stable voltage and current output.
By consolidating these functions into a single chip, Apple simplifies the fast-charging circuitry, reducing the adapter’s size without compromising performance.
Thermal Management and Safety
Operating at peak power levels can generate significant heat, posing potential risks. To address this, Apple incorporates an internal thermistor within the adapter. This component continuously monitors the internal temperature and, if excessive heat is detected, dynamically adjusts the power output downward. This proactive approach prevents overheating, safeguarding both the adapter and the connected device.
Output Filtering and Component Quality
The adapter’s output filtering is managed by an Infineon protocol chip, ensuring clean and stable power delivery. High-quality capacitors from NCC and Nichicon further enhance the adapter’s reliability and longevity.
Performance and User Experience
The 40W Dynamic Power Adapter’s ability to deliver up to 60W makes it an ideal companion for devices like the iPhone 17 and MacBook Pro. This increased power output enables faster charging times, enhancing user convenience. Despite its compact size, the adapter’s robust construction and advanced thermal management ensure safe and efficient operation.
