The Aiffro K100 Mini NAS presents itself as a compact and versatile network-attached storage (NAS) device, appealing to users seeking high-performance storage solutions. However, its design and functionality may pose challenges for those entrenched in the Apple ecosystem.
Design and Build

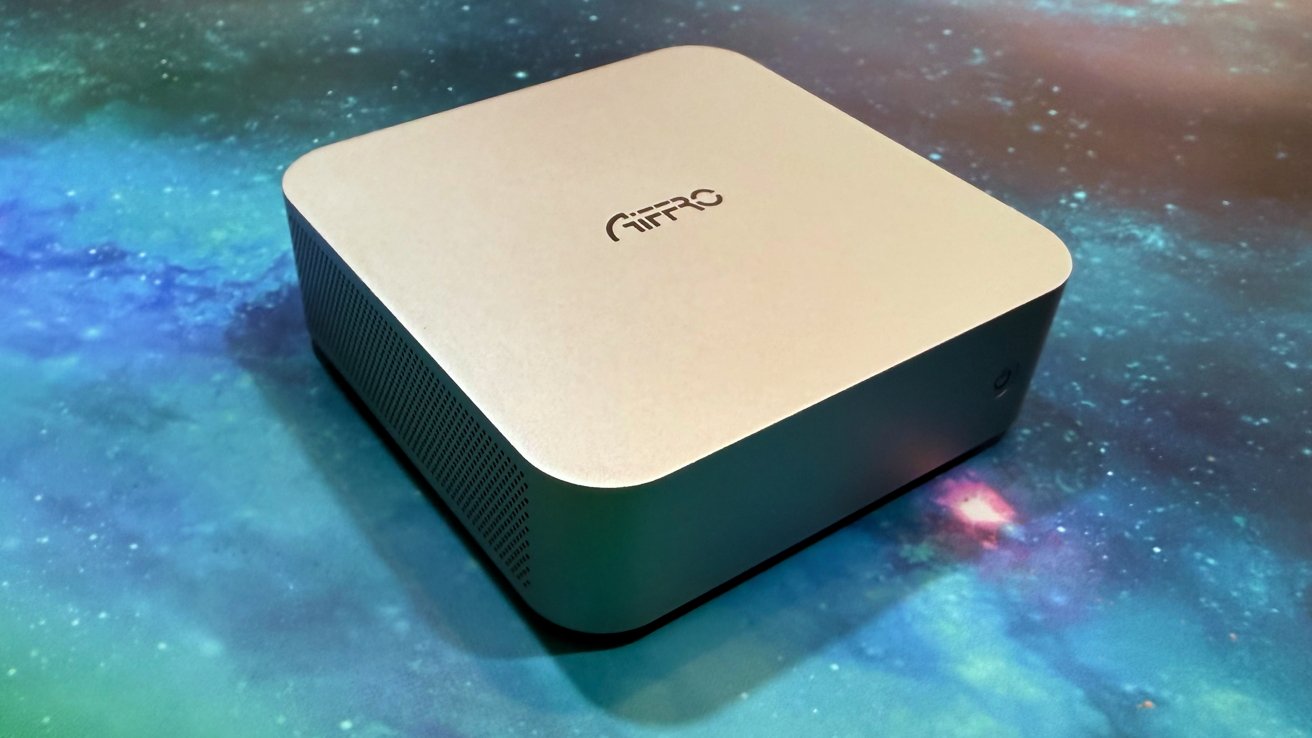

Resembling the aesthetics of Apple’s Mac mini, the Aiffro K100 features an aluminum alloy enclosure with rounded corners, offering a sleek appearance. Measuring 4.6 inches by 4.4 inches with a height of 1.3 inches, it lives up to its Mini designation. The device includes side vents with small perforations and larger rear slits for ventilation. The top surface displays the Aiffro logo, while the front houses a power button, with all connectivity ports located at the rear. Its compact size makes it a portable option, distinguishing it from bulkier NAS appliances.
Connectivity Options
The rear panel of the Aiffro K100 offers a variety of ports:
– Ethernet: A single Gigabit Ethernet port supporting speeds up to 2.5Gbps, catering to users with advanced network infrastructures.
– USB Ports: Two USB 3.2 Gen2 Type-C ports for high-speed data transfers, complemented by two USB-A 2.0 ports suitable for peripheral connections.
– Power Input: A dedicated USB-C port for power supply.
– Display Output: An HDMI 1.4 port allows for direct display connections, facilitating media playback without the need for network access.
Storage Capabilities
Upon removing the top cover, users can access the storage compartment designed to accommodate up to four 2280 M.2 PCIe Gen3x2 SSDs. While this configuration offers faster data access speeds compared to traditional hard drives, it comes at a higher cost per gigabyte. The solid-state nature of the drives ensures durability and resistance to data loss from physical shocks during operation.
Operating System and Software
A distinctive aspect of the Aiffro K100 is its lack of a pre-installed operating system, effectively positioning it as a blank slate for users. This approach provides flexibility, allowing installations of various systems such as FreeNAS, TrueNAS, or even Windows 11. However, this DIY setup may be daunting for users seeking a plug-and-play solution. The absence of an OS means that features like RAID support are not immediately available, requiring manual configuration. On the upside, this openness grants users complete control over the software environment, enabling the installation of applications like Docker or Plex for media server functionalities.
Hardware Specifications
The Aiffro K100 is powered by an Intel Alder Lake N100 processor, a 7nm Gracemont chip with four cores, four threads, 6MB of cache, and a clock speed of 3.4GHz. This low-power processor is commonly found in mini PCs and is complemented by integrated Intel UHD Graphics. The device includes 8GB of 4,800MHz LPDDR5 memory, which is soldered onto the board, making it non-upgradable.
Performance and Usability
In practical use, the Aiffro K100 operates quietly, thanks to its solid-state storage and efficient design. Power consumption is modest, with measurements indicating 11W at idle and 18W under load, contributing to energy efficiency. However, the necessity for users to source and install their own operating system, coupled with the non-upgradable memory, may deter those seeking a straightforward NAS solution.
Considerations for Apple Users
For Apple enthusiasts, the Aiffro K100’s DIY nature and lack of native macOS integration might be less appealing. Alternatives such as utilizing a Mac mini as a home server, paired with a RAID enclosure, could offer a more seamless experience within the Apple ecosystem. This setup leverages familiar hardware and software, potentially providing a more user-friendly and versatile solution.
Pros and Cons
Pros:
– Compact and portable design.
– High-speed data access and networking capabilities.
– Highly configurable software environment.
Cons:
– Requires manual operating system installation, making it less user-friendly.
– Memory is non-upgradable, limiting future expansion.
Conclusion
The Aiffro K100 Mini NAS stands out as a compact and flexible storage device, appealing to tech enthusiasts and tinkerers. Its high-speed capabilities and customizable software environment offer a robust platform for various applications. However, the lack of a pre-installed operating system and non-upgradable memory may present challenges for users seeking a more straightforward, plug-and-play solution, particularly within the Apple ecosystem. For those willing to invest time in setup and configuration, the Aiffro K100 offers a rewarding project with substantial performance benefits.
